PRODUCT DETAILS

Introduction:

DWC series mobile wood chipper is used to cutting the waste wood or make wood chips, wood pieces which specially designed for round logs, square blocks, tree branches, wood staff and so on.


The efficiency is much higher than the ordinary type wood chipping machine. Operation easy, maintenance ratio low and simpler, lifetime long and the noise is low.


This mobile wood chipper power supply by the high efficiency diesel engine, and this chipping machine with 1 pair of wheels, flexible and Convenient to move to anywhere.


Based on customer’s demand we can adding the hydraulic feeding rollers in front of the wood chipping machine, which can help operator easily feeding the log wood.


Mainly Parameters:


ModelDWC-18DWC-22DWC-40
Engine18HP22HP40HP
Chipper capacitymax. 120mmmax. 150mmmax. 200mm
Flywheel diameter640mm640mm640mm
Blades number1 stationary blade, 2 rotary blades1 stationary blade, 2 rotary blades1 stationary blade, 2 rotary blades
Flywheel weight85kg85kg85kg
Hopper size 200x220mm200x220mm200x220mm
Rated RPM108010801280
Weight650kg690kg800kg
Working efficiency5-10cbm/h7-11cbm/h9-13cbm/h

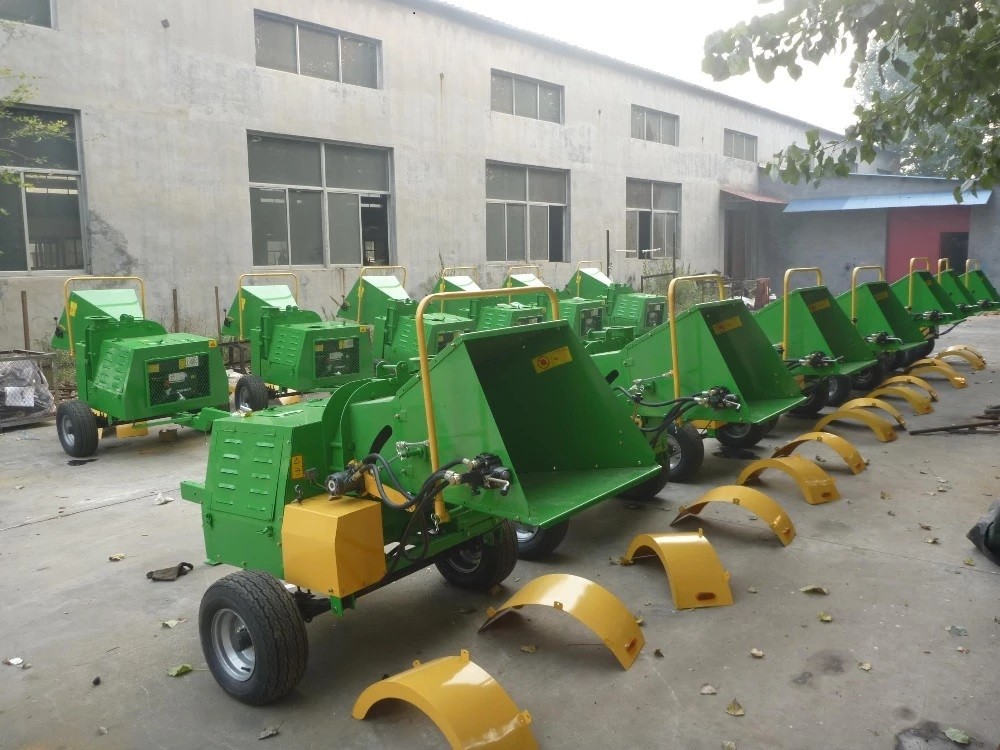

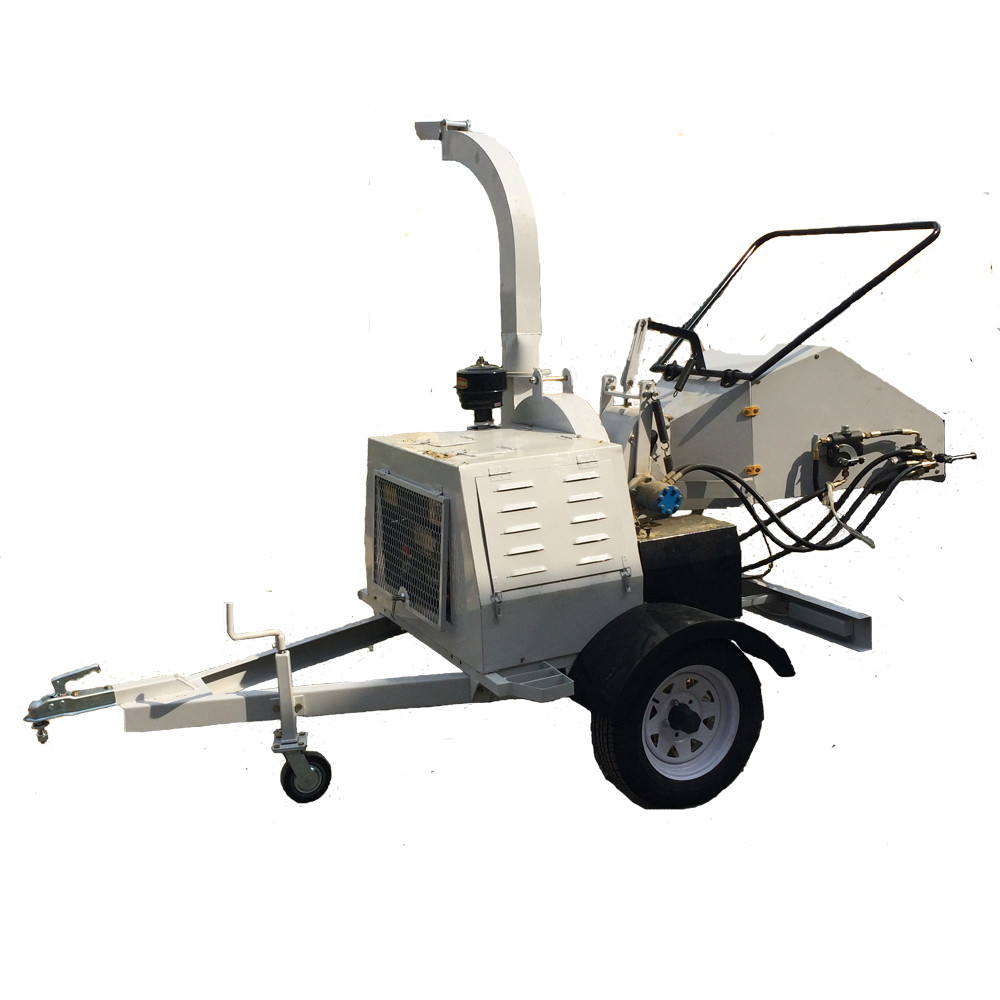

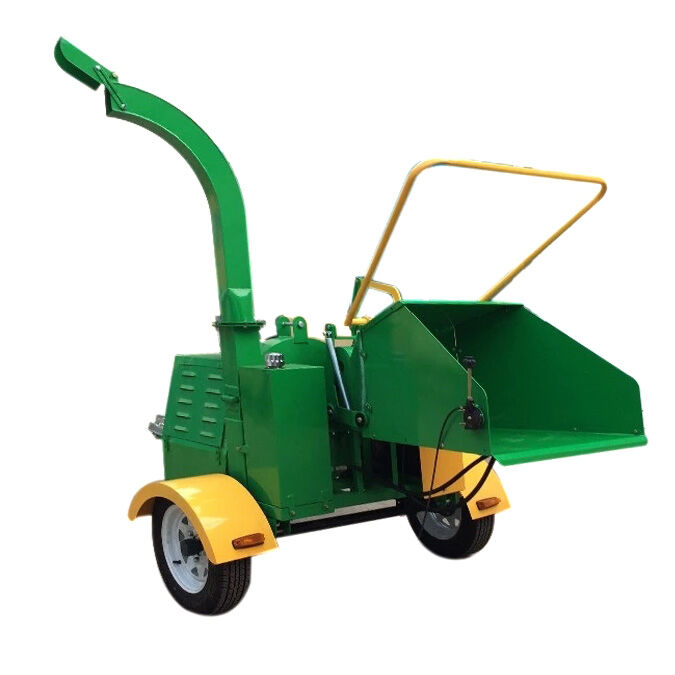

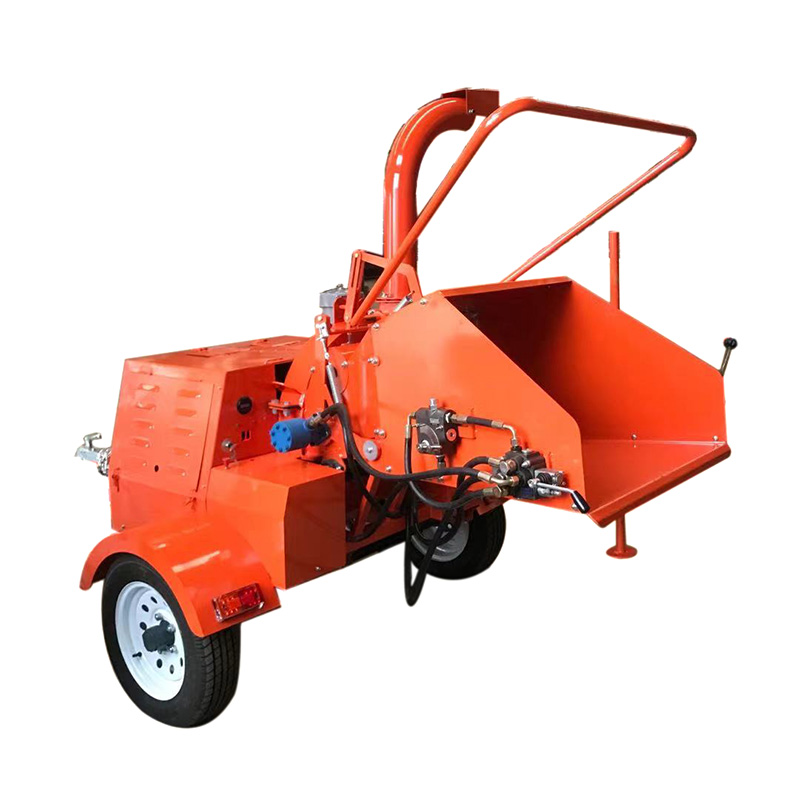

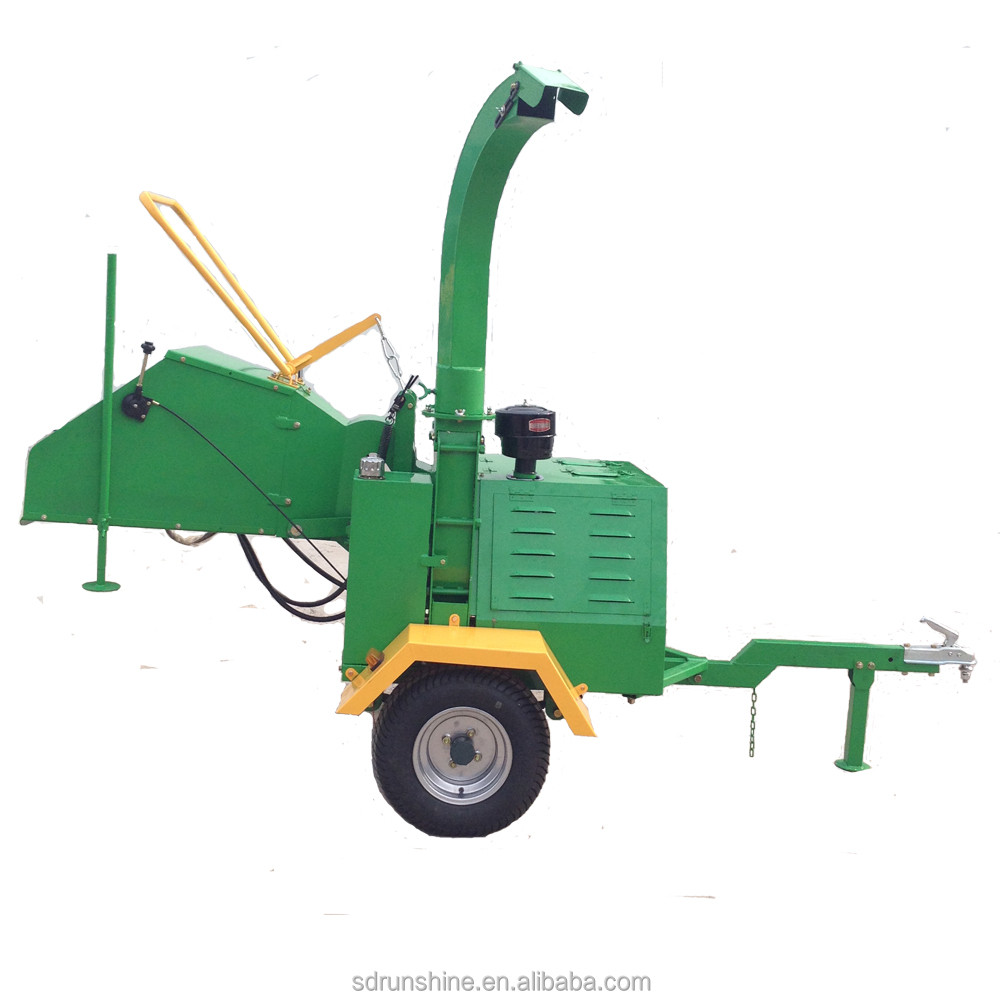

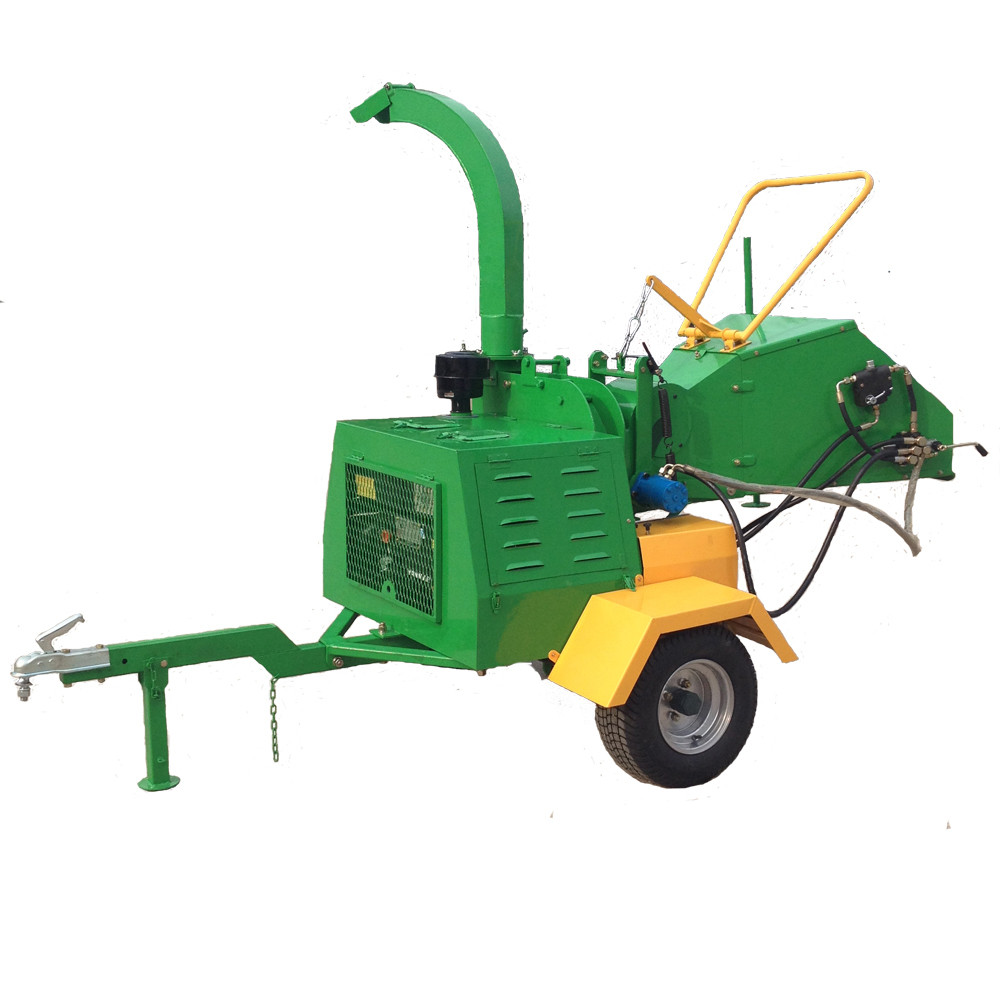

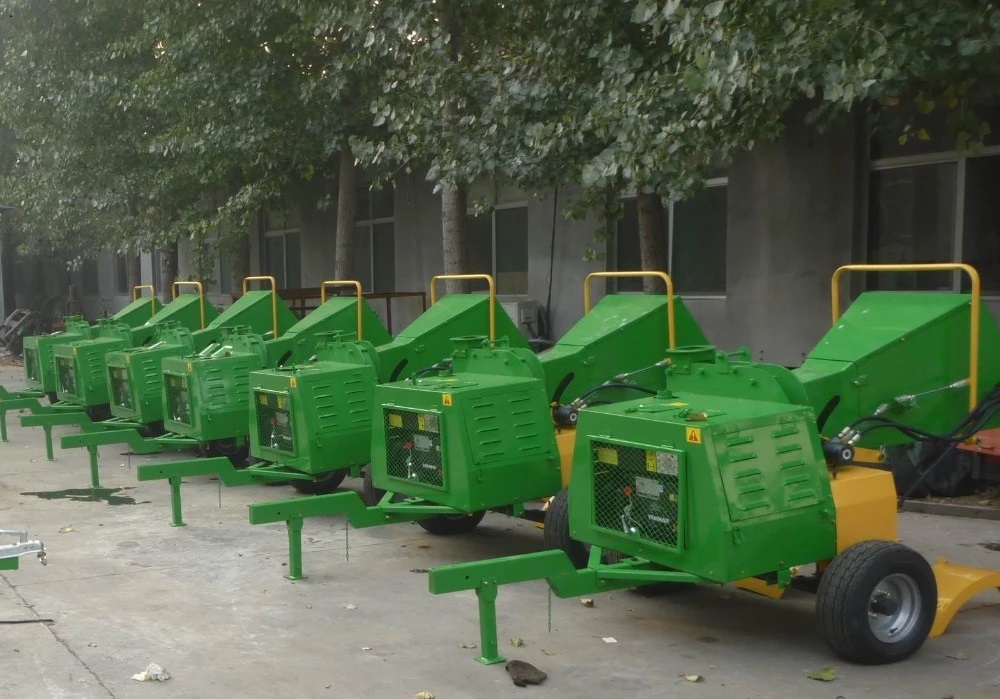

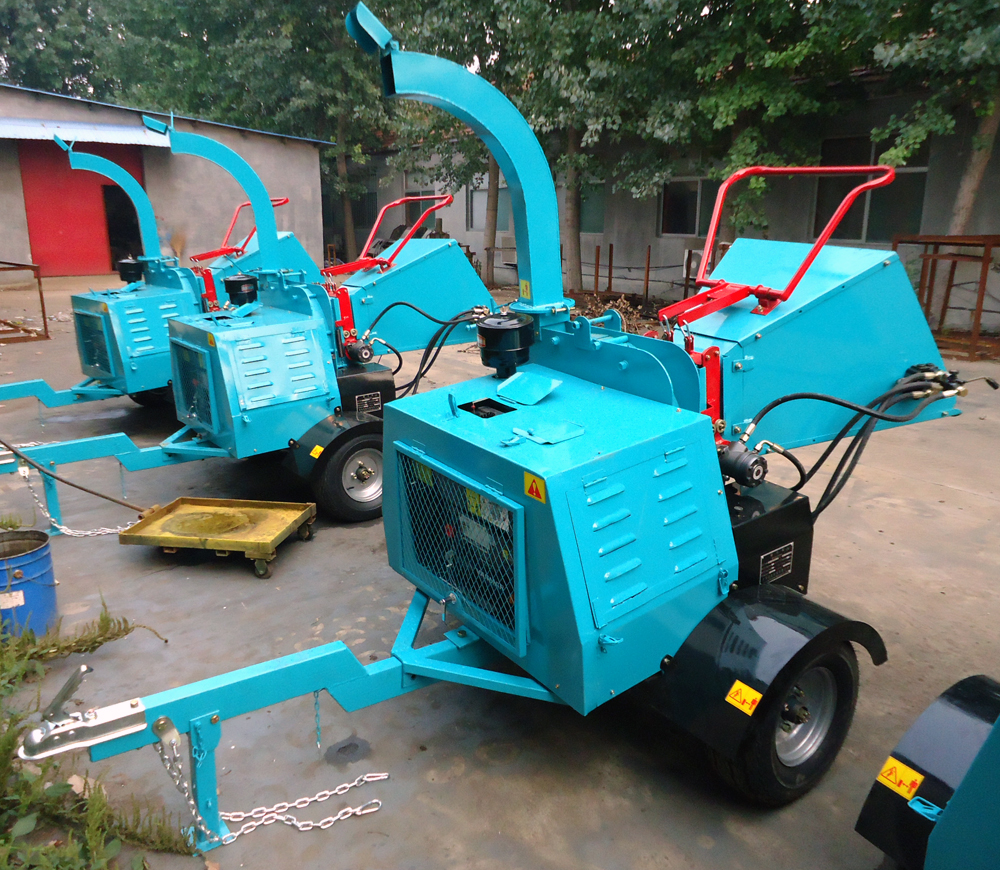

Photo of Machines:

Diesel engine wood chipper (1)-1.jpg002-2.jpg主图-05 (2).jpg主图-04.jpg

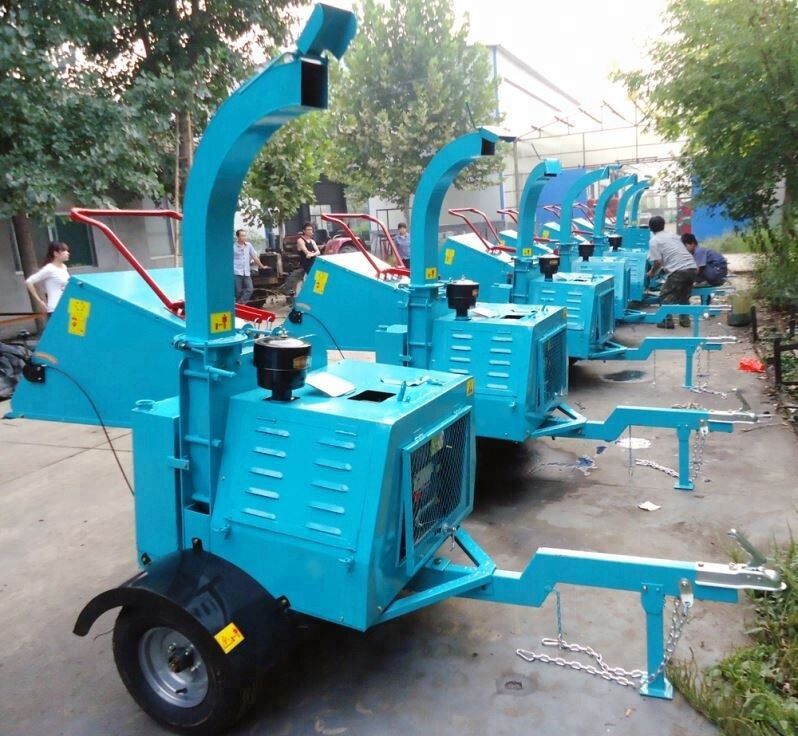

Diesel engine wood chipper (21).jpgDiesel engine wood chipper (18).jpg
