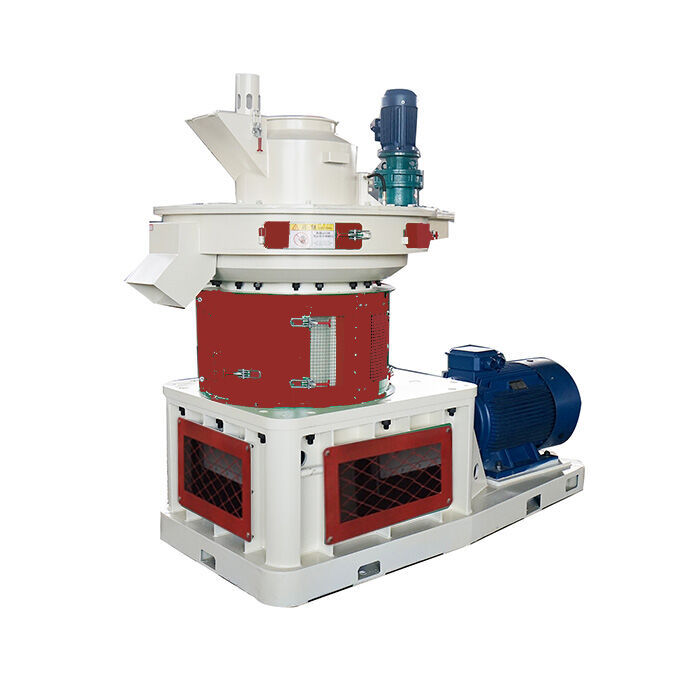

XGJ560 Wood Pellet Making Machine

Model:	XGJ560
Power:	90 KW
Capacity:	1000 -1500 KG/hour
Type:	Vertical Ring Die
Application:	Wood Pellet Making

Message

Product Details

Introduction:

Wood Pellet Making machine is mainly using for press different kind of biomass materials into cylinder shape fuel pellets.

Machine with double layer stainless steel ring die, vertical installed on the machine, when machine working, the ring die fixed, only the inside roller rotary against the inner-side of ring die, Machine working more stable.

Wood pellet making machine is mainly applicable for difficult molding materials with low adhesion rate, for example, hard wood sawdust, rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials.

Mainly Parameter:

Model	Power (kw)	wood pellets makingCapacity (kgs/h)	Weight of the machine(kgs)	Dimension of the machine (mm)
XGJ460	55+1.5+0.55+1.5	500-800	4200	2600x1100x1850
XGJ460P	55+1.5+0.55+1.5	500-800	3200	2300x1100x1500
XGJ560	90+1.5+0.75+0.55+2.2	1000-1500	6100	2600x1300x2300
XGJ560P	132+1.5+0.75+0.55+2.2	1500-2000	4600	2600x1250x1600
XGJ700P	160+1.5+0.75+0.55+2.2	2000-2500	14500	3300x1400x3100
XGJ850	220+3+0.75+0.55+3	2000-3000	9600	2600x1600x1950
XGJ850P	220+3+0.75+0.55+3	2500-3500	13500	2650×1850×2100
XGJ850P	250+3+0.75+0.55+3	3000-4500	15000	2750×1850×2100

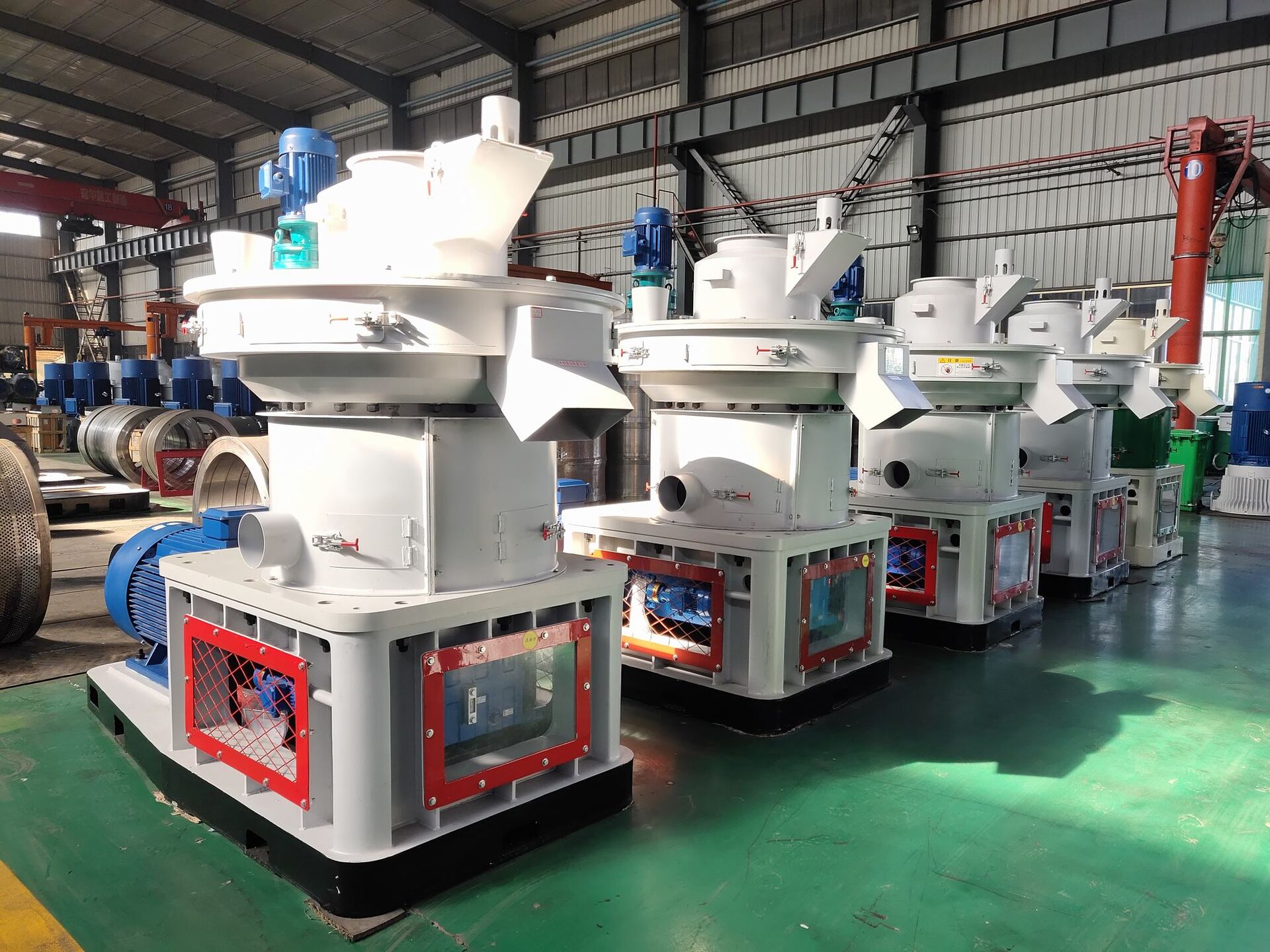

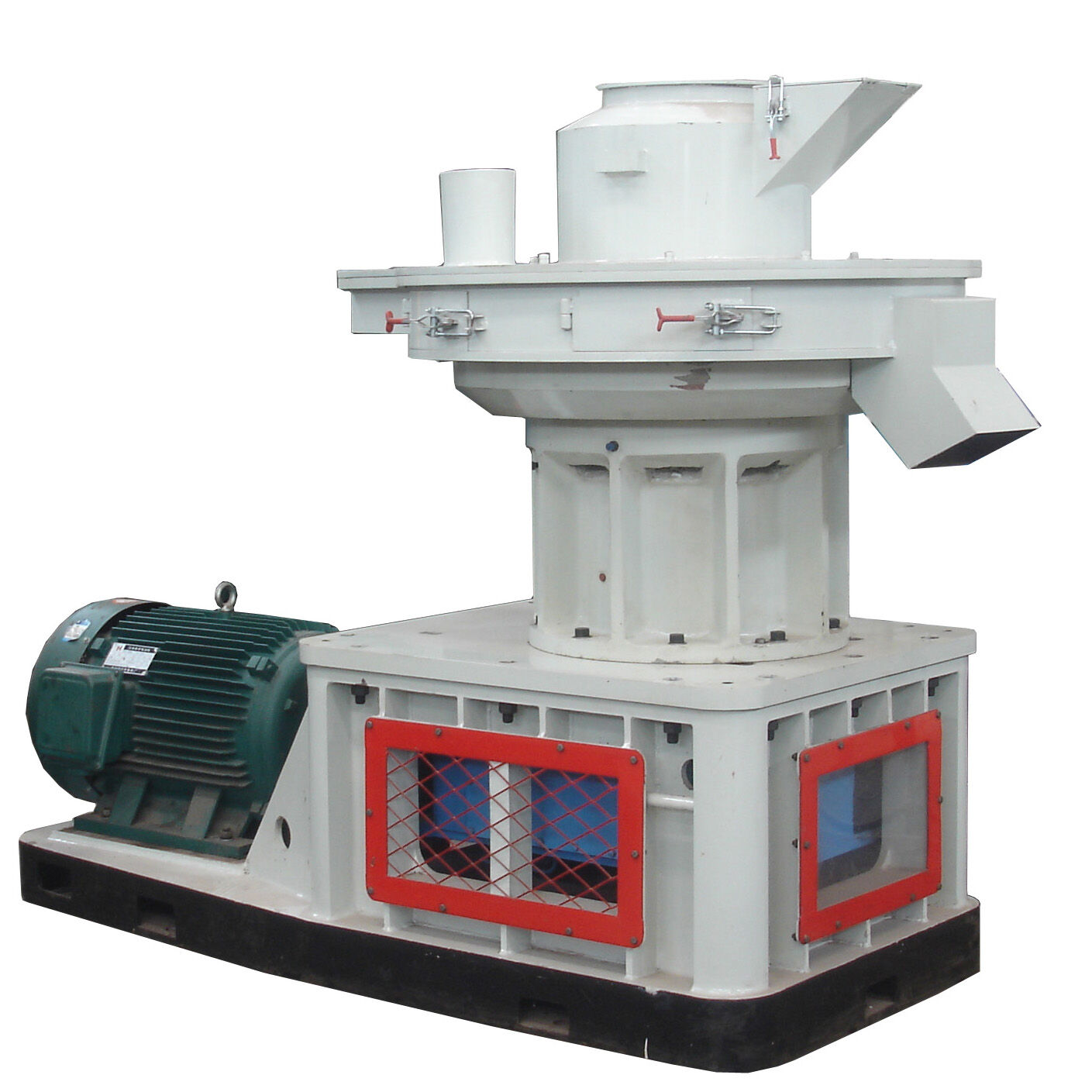

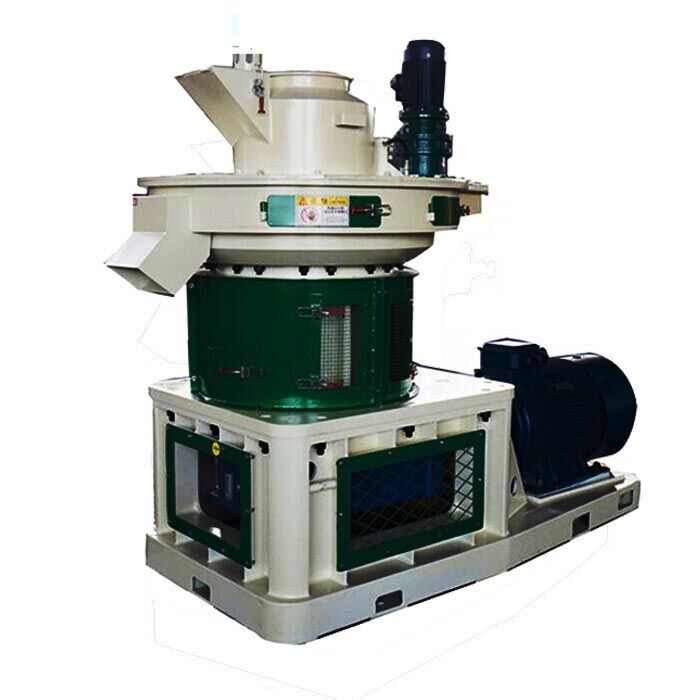

Photo of Machines:

From raw materials to final particles

1.Q. What is your payment term?

A: T/T 30% down payment, balance to be paid before shipment.

2.Q: What is your main market?

A: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia

3.Q: What is your delivery time?

A: Producing time depends on which machines you ordered. Roughly all machines we have instock, some new produce produts takes 10 - 30 days.

4.Q: What documents you can offer?

A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.

5.Q: If equipments have some quality problem, how would you deal with?

A: We will responsible for all the quality problems. Change all the parts for free.
