SG50 Multi-functional Hammer Mill

Model:	SG
Power:	7.5 -75 KW
Capacity:	100 - 3000KG/Hour
Type:	Multifunctional
Application:	Materials Grinding

Message

Product Details

Introduction:

The SG type small hammer mill is the most ideal grinding equipment for all kinds of animal feed, wood chips, wood shavings, grass, straw, stalk, rice husk, palm fiber and so on. when crush plastic, PVC, rubber e.c.t,

It also can crush animal feed materials such as soybean, maize, cereal and fertilizer materials from animal manure, chemical e.c.t which is mainly used in wood factory, feed factory, organic fertilizer factory, and so on.

The SG small hammer mill mainly spare parts such as hammers and screener are made by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure the parts high precision and good quality.

SG small hammer mill machine can work with air fan and cyclone, air lock, dust filter, after crushed, the powder will outlet from cyclone bottom, which is very environmental protection and easy to collect dust.

Mainly Parameters:

Model	Power(kw)	Capacity (Ton / h)	Hammer Qty(piece)	Weight(T)	Dimension(mm)
SG40	7.5	0.1-0.3	12	0.27	1310×800×1070
SG50	11/15	0.2-0.4	16	0.45	1380×800×1010
SG65x27	22	0.5-0.8	24	0.95	1900×800×1100
SG65x55	37-55	1-2	48	1.5	2100×1000×1100
SG65x75	55-75	2-3	72	2.0	2100×1700×1500

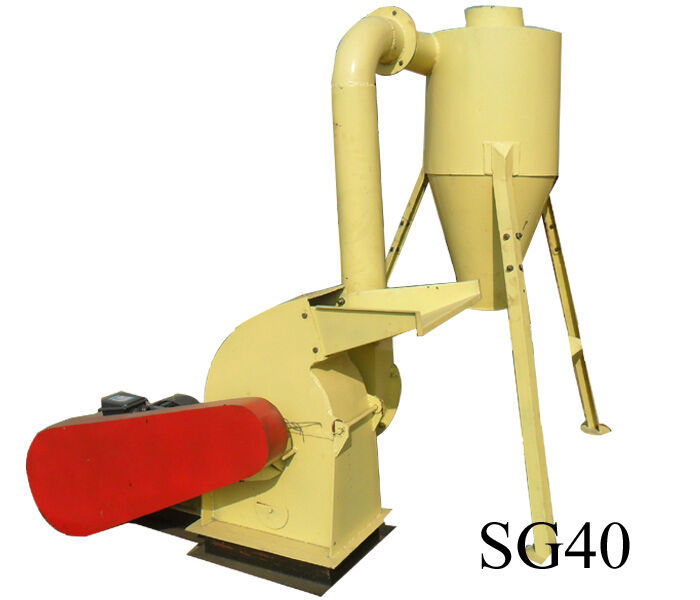

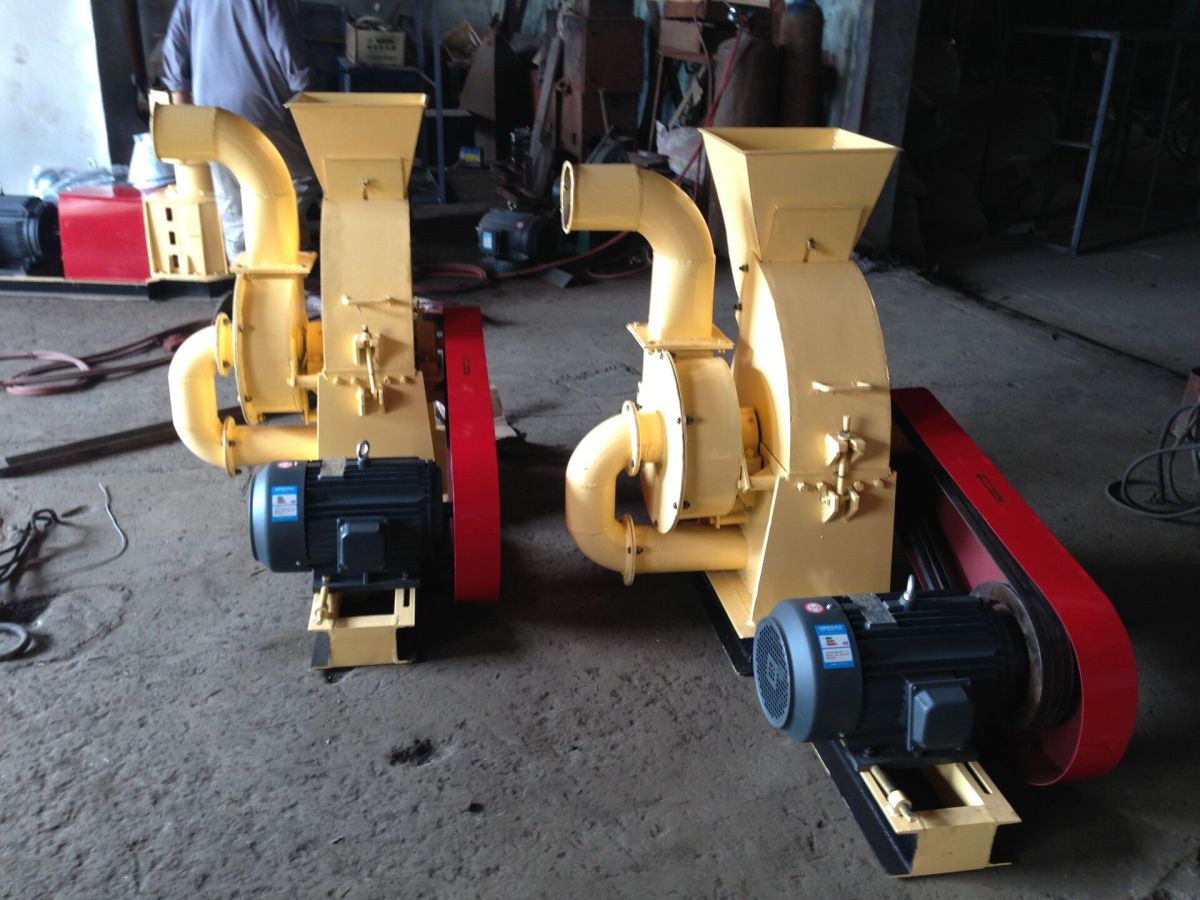

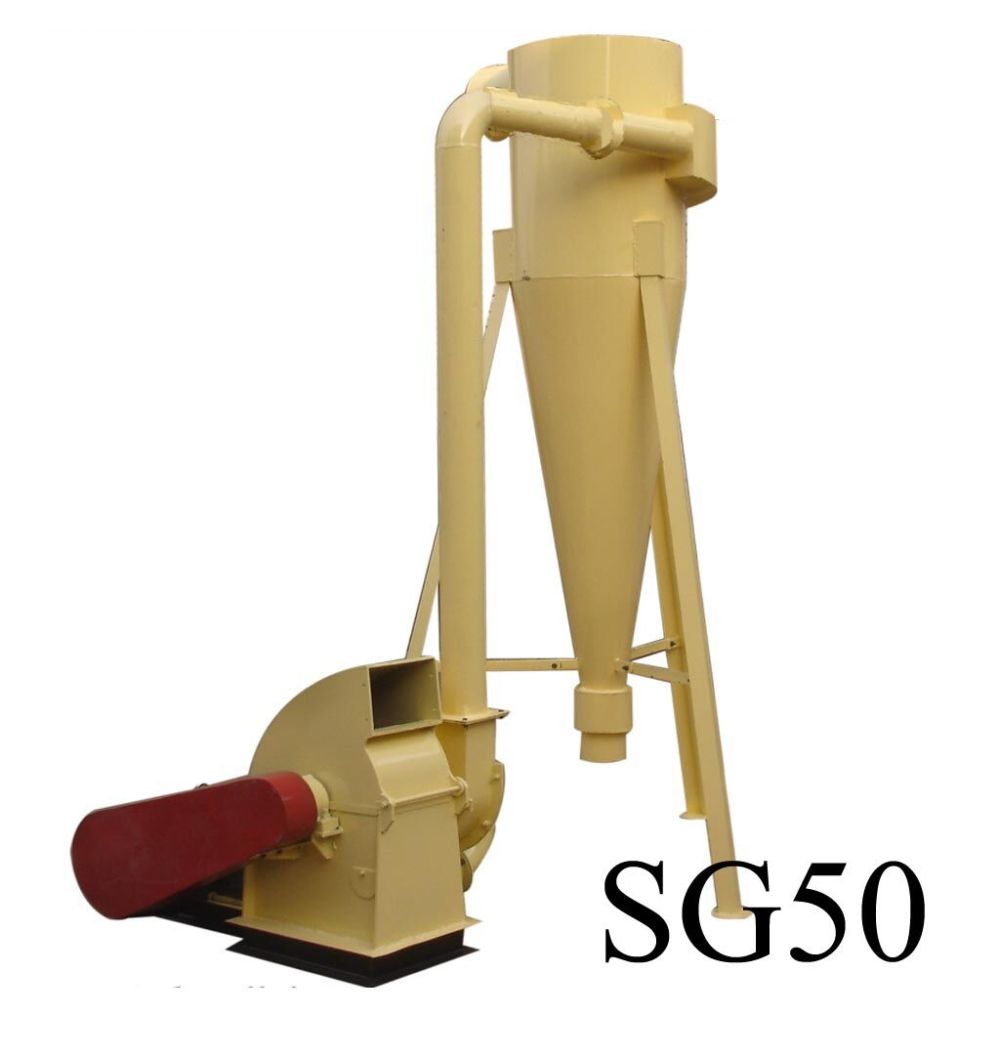

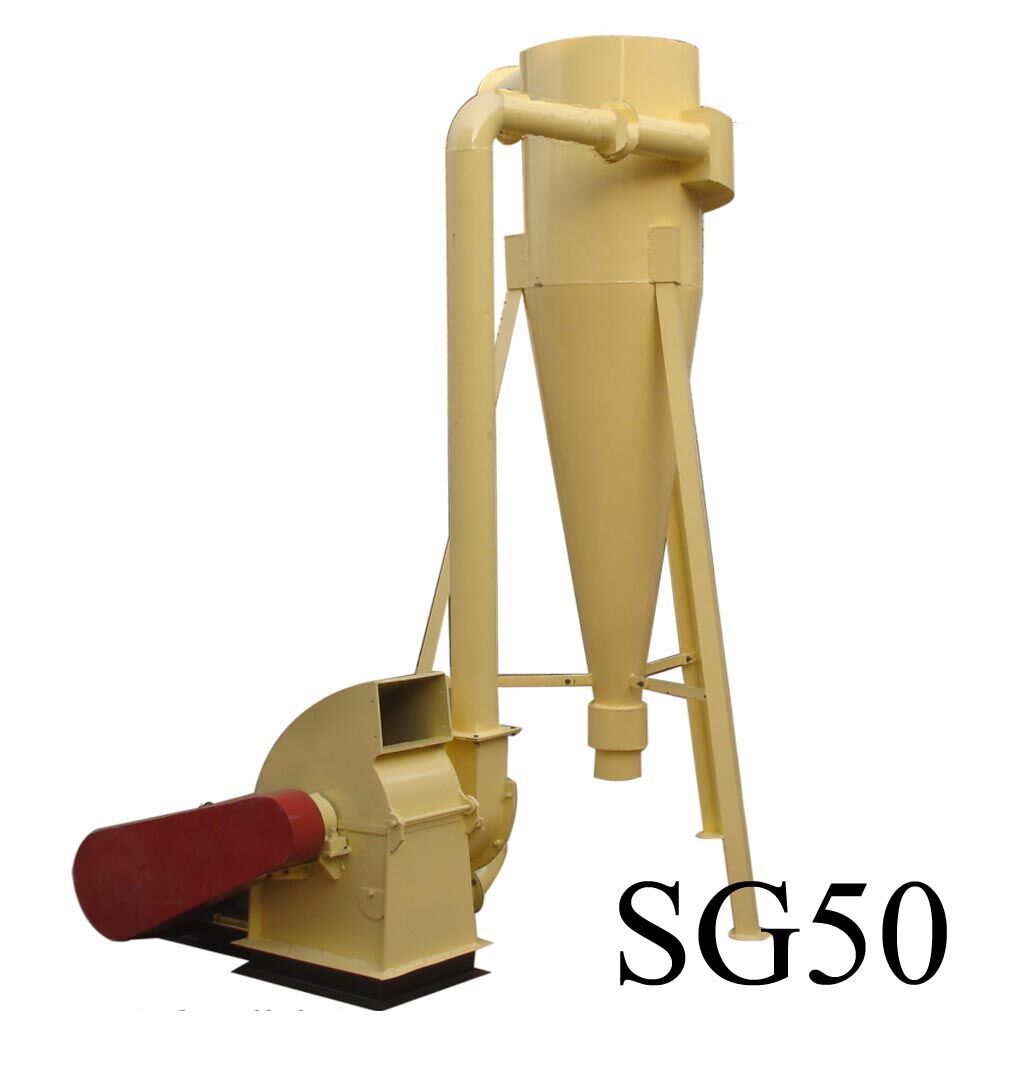

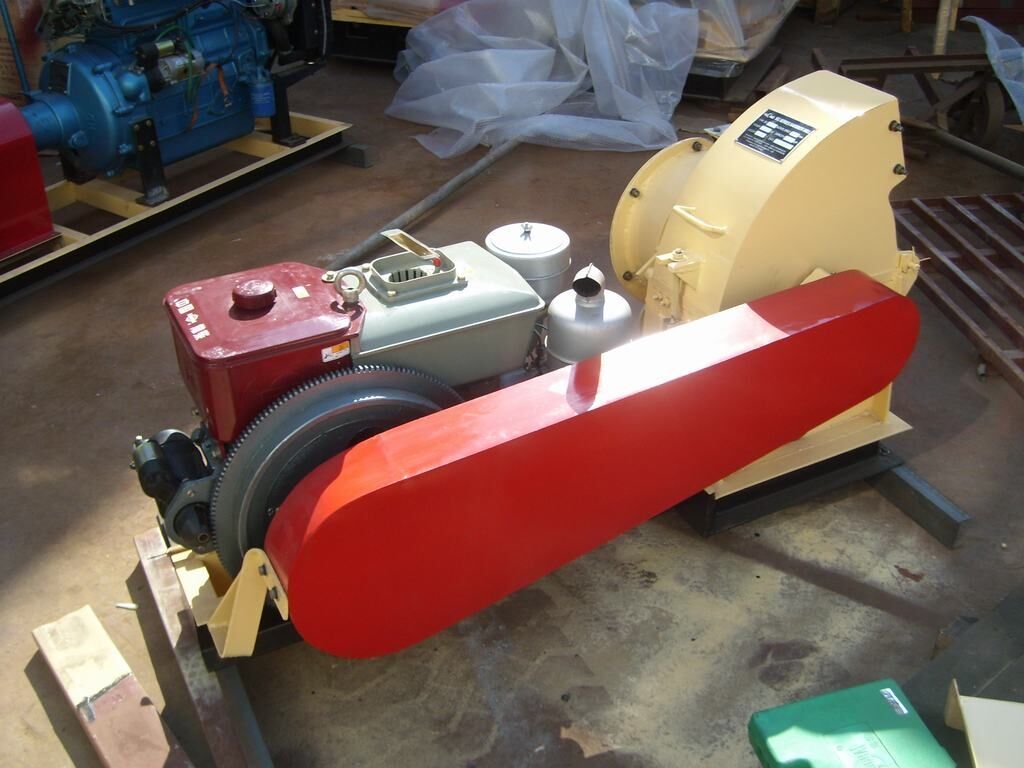

Photo of Machines:

From raw materials to final particles

1.Q. What is your payment term?

A: T/T 30% down payment, balance to be paid before shipment.

2.Q: What is your main market?

A: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia

3.Q: What is your delivery time?

A: Producing time depends on which machines you ordered. Roughly all machines we have instock, some new produce produts takes 10 - 30 days.

4.Q: What documents you can offer?

A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.

5.Q: If equipments have some quality problem, how would you deal with?

A: We will responsible for all the quality problems. Change all the parts for free.
