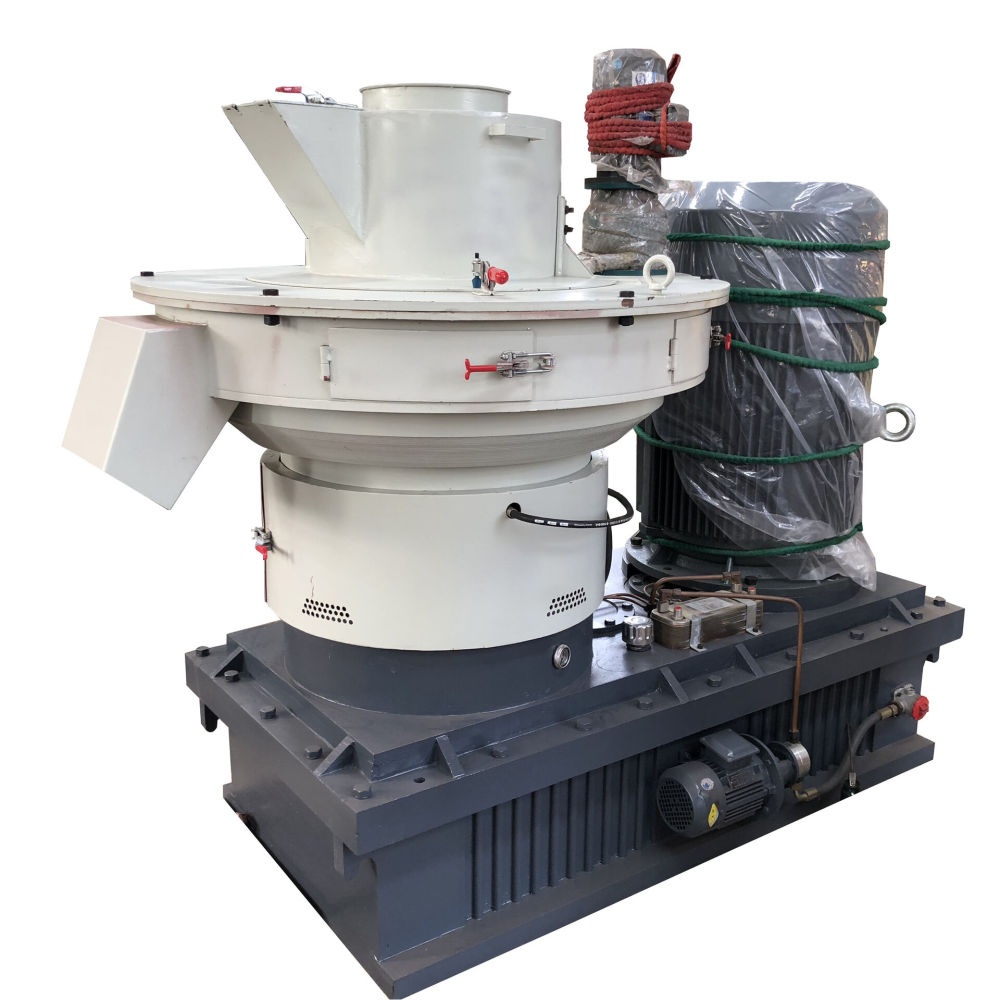

XGJ460P Pellet Mill Machine

Model:XGJ460
Power:55KW
Capacity:500-800 KG/hour
Type:Vertical Ring Die
Application:Wood Pellet Making
Tel:+86-186-156-06-726
WhatsApp:+86-186-156-06-726
Email:admin@deximachine.com
Message
Product Details

Introduction:


Pellet mill machine is our main product which has adopted the essence of biomass pellet machine in oversea market, using for press different kind of biomass materials into cylinder shape fuel pellets.


The heart parts "double layer ring die" has unique structural assembly and "rollers" are made of high wearable alloy materials. These two parts have the following characters: Particular design, reasonable structure, low energy, high efficiency, long life and so on.


Pellet mill machine is mainly applicable for difficult molding materials with low adhesion rate, for example, hard wood sawdust, rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials.


Mainly Parameter:



ModelPower (kw)wood pellets makingCapacity (kgs/h)Weight of the machine(kgs)Dimension of the machine (mm)
XGJ46055+1.5+0.55+1.5500-80042002600x1100x1850
XGJ460P55+1.5+0.55+1.5500-80032002300x1100x1500
XGJ56090+1.5+0.75+0.55+2.21000-150061002600x1300x2300
XGJ560P132+1.5+0.75+0.55+2.21500-200046002600x1250x1600
XGJ700P160+1.5+0.75+0.55+2.22000-2500145003300x1400x3100
XGJ850220+3+0.75+0.55+32000-300096002600x1600x1950
XGJ850P220+3+0.75+0.55+32500-3500135002650×1850×2100
XGJ850P250+3+0.75+0.55+33000-4500150002750×1850×2100
