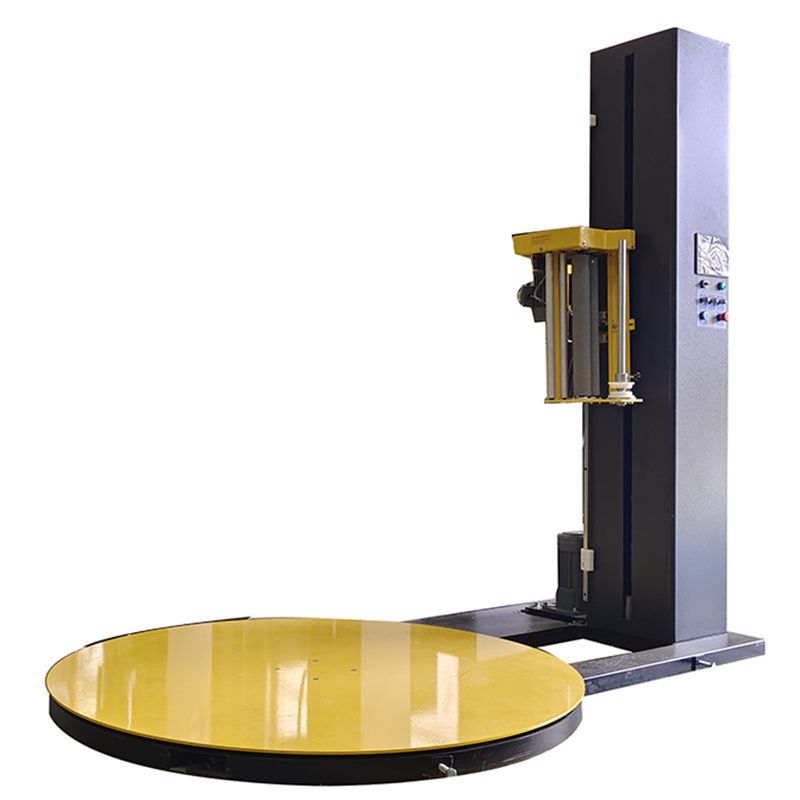

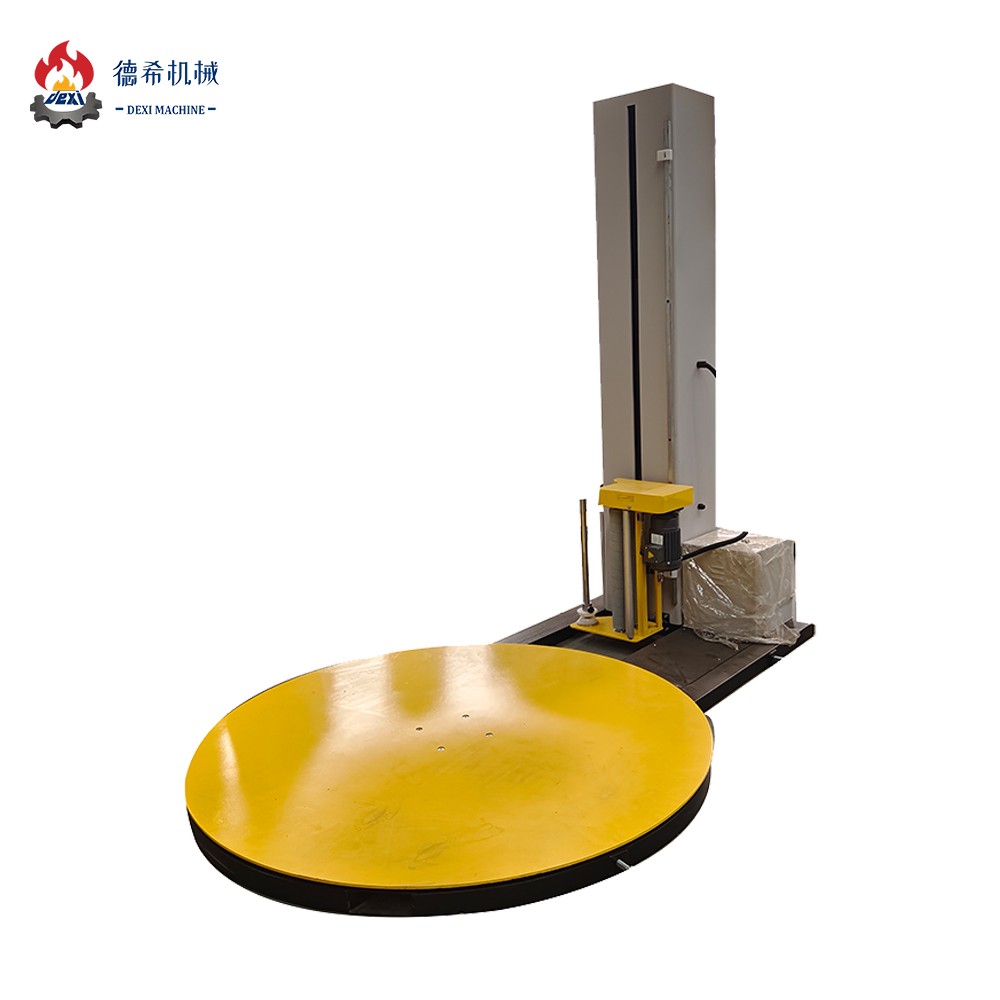

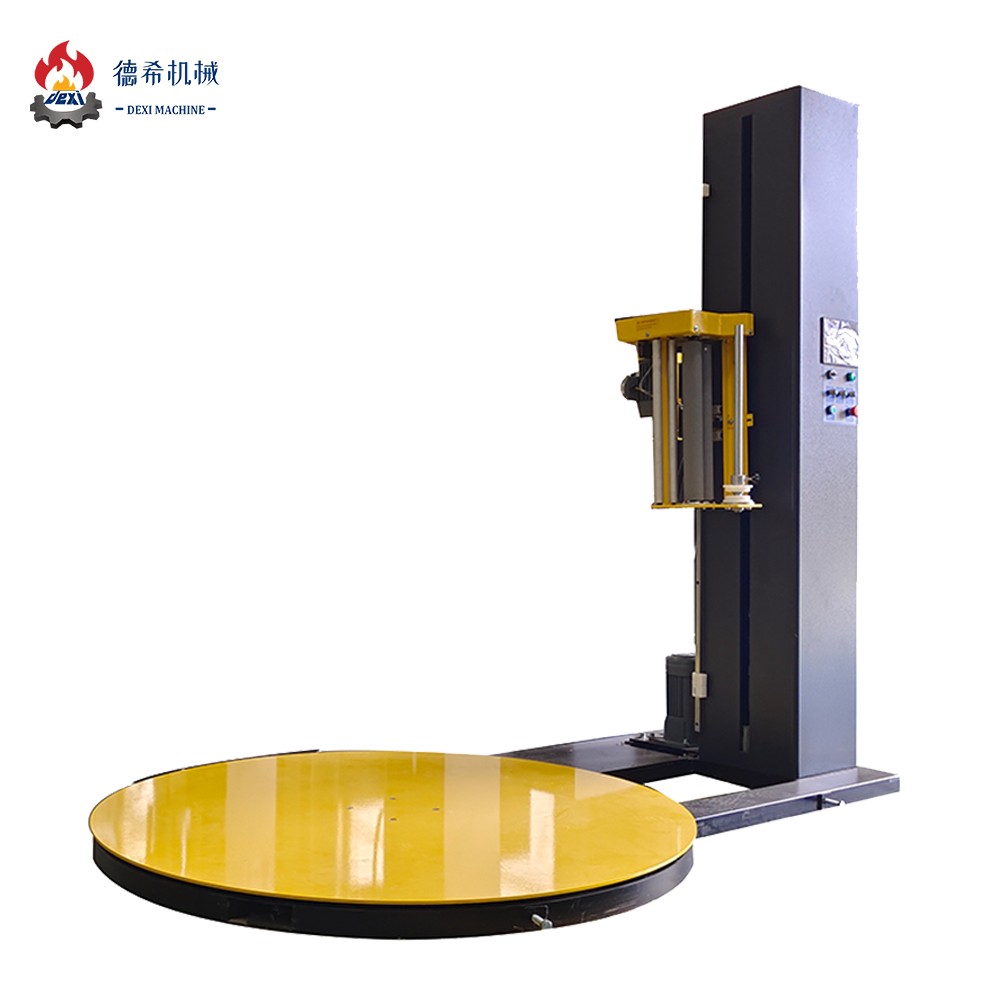

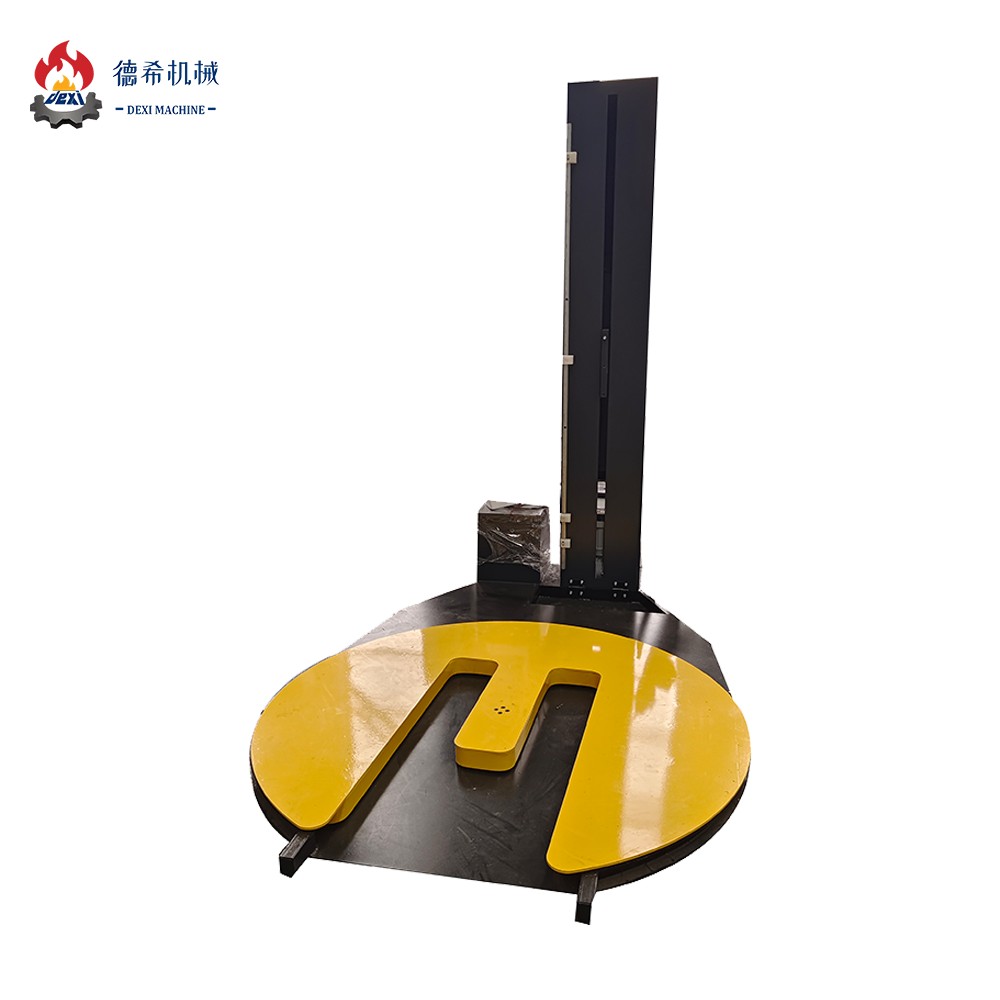

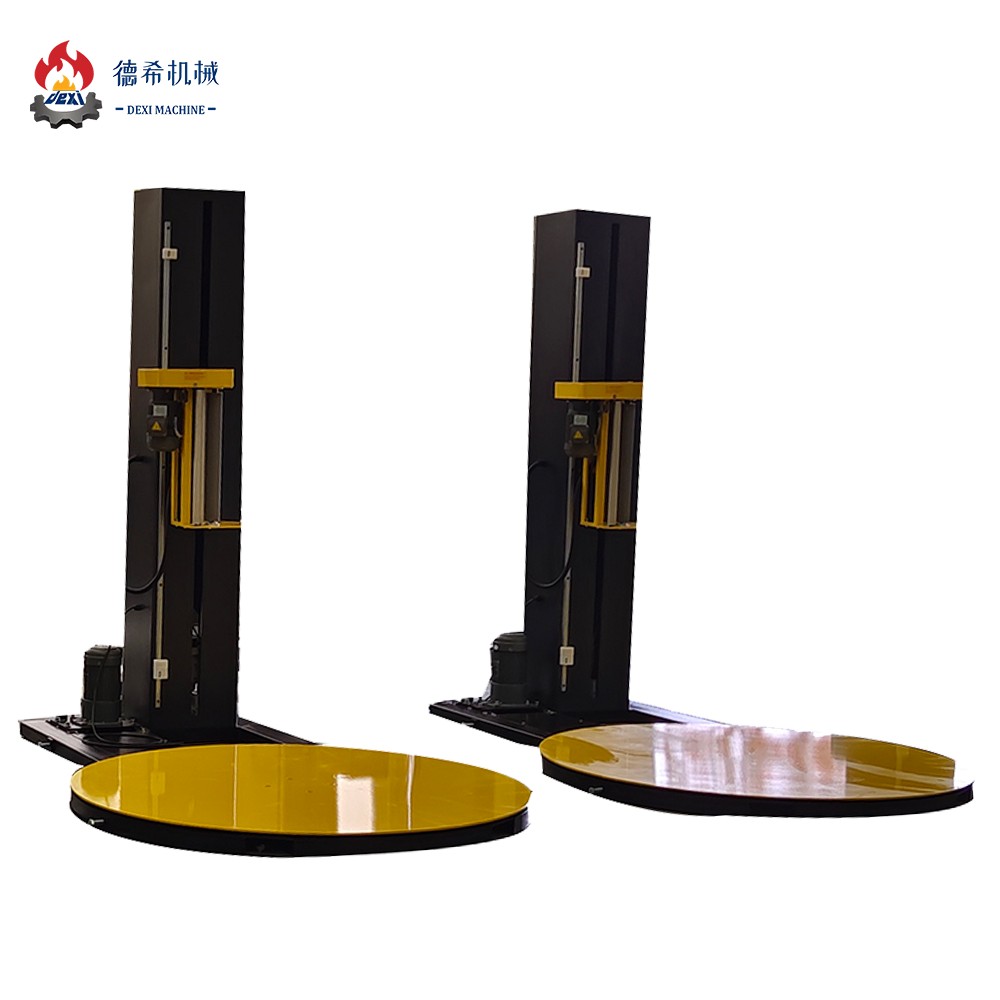

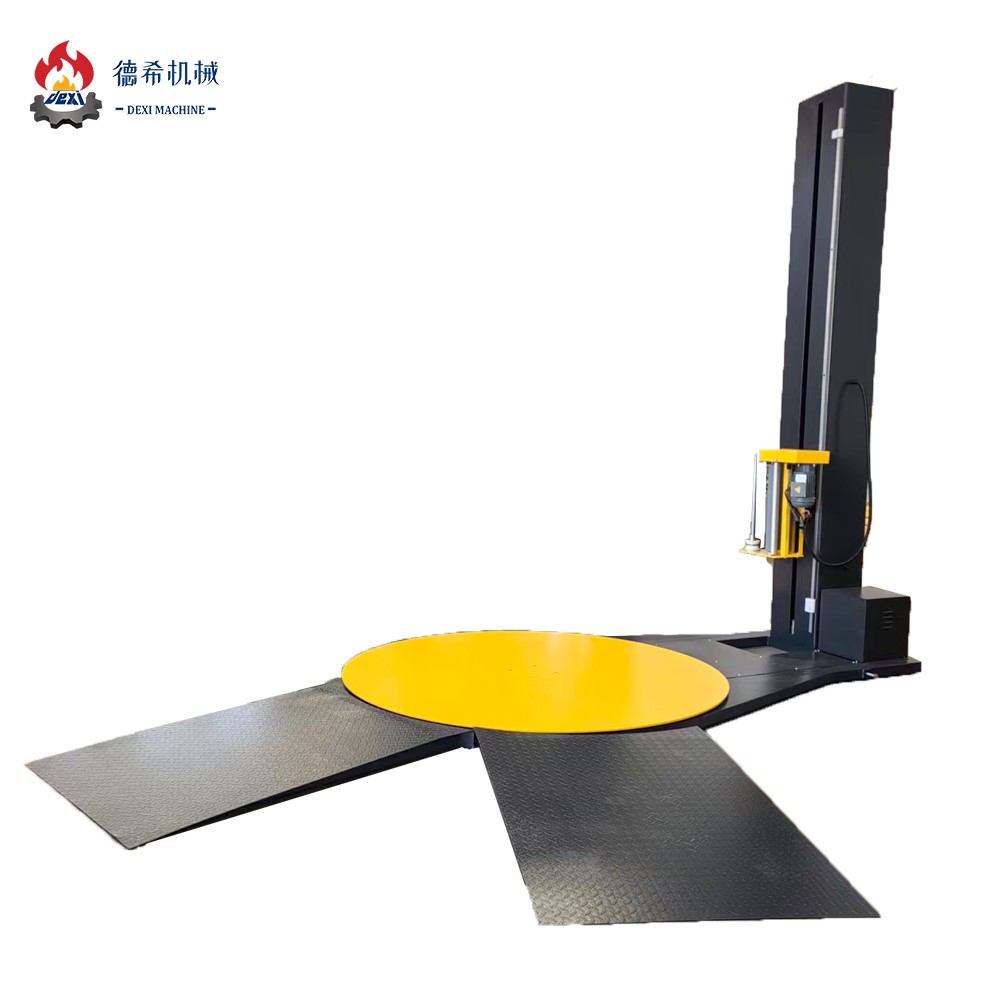

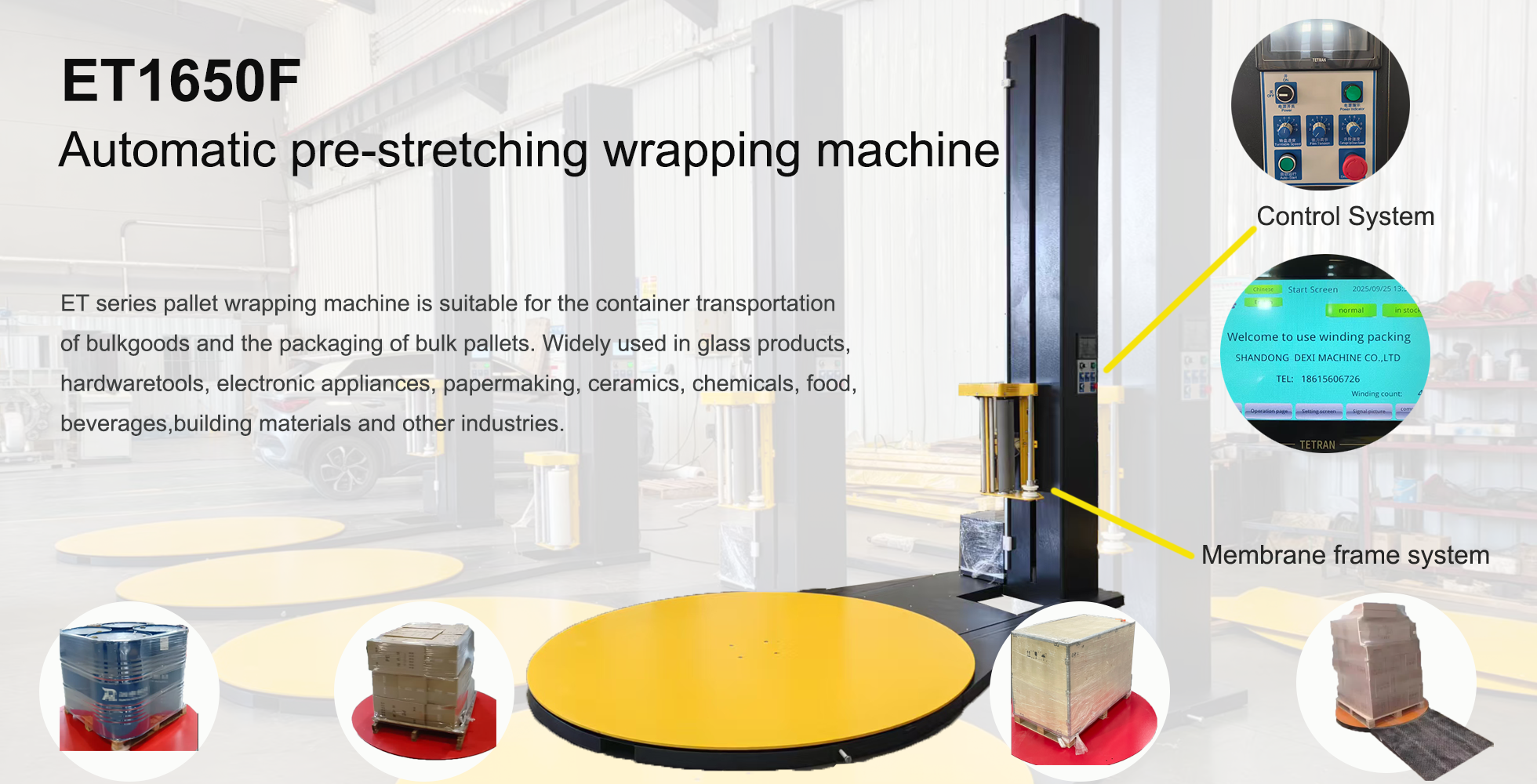

ET1650F Automatic pre-stretching wrapping machine[Alisa]

Product Details

ET series pallet wrapping machine is suitable for the container transportation of bulkgoods and the packaging of bulk pallets. Widely used in glass products, hardwaretools, electronic appliances, papermaking, ceramics, chemicals, food, beverages,building materials and other industries. It can improve logistics efficiency, reducelosses during transportation, and has the advantages of dustproof, moisture-proof,and reduced packaging costs. It is an ideal choice for improving product packaginggrades.

3


Machine Parameters

Wrapping Specifications(500-1200) mmx (500-1200)mm (LxW)
Packaging height (max)L type: 2000mm H type: 2400mm Y type: 2800mm
packaging efficiency20-40 Torr/hour
Turntable speed6-14rpm variable frequency adjustable speed, slow start and slow stop
Turntable diameter1650mm
Turntable height85mm
Turntable load (max)2000kg
Membrane frame systemPre-stretching fim frame, pre-stretching up to 250%, automatic fim feeding, frequency conversion speed regulation
Lifting columnDouble chain structure, the lifting speed is adjustable by frequency conversion
Control SystemPLC ooritro, the number of windng layers and imes are adjustadle, the tumtabe s automaticaly reset, and the heght of the goods s automaticaly sersed
Packaging MaterialsLLDPE stretch film, thickness (T) 17-35um, width (W) 500mm
Machine weight (max)700kg
Dimensions2545mmx 1650mm x (2310-3110)mm
Power/Voltage1.5KW/AC220V

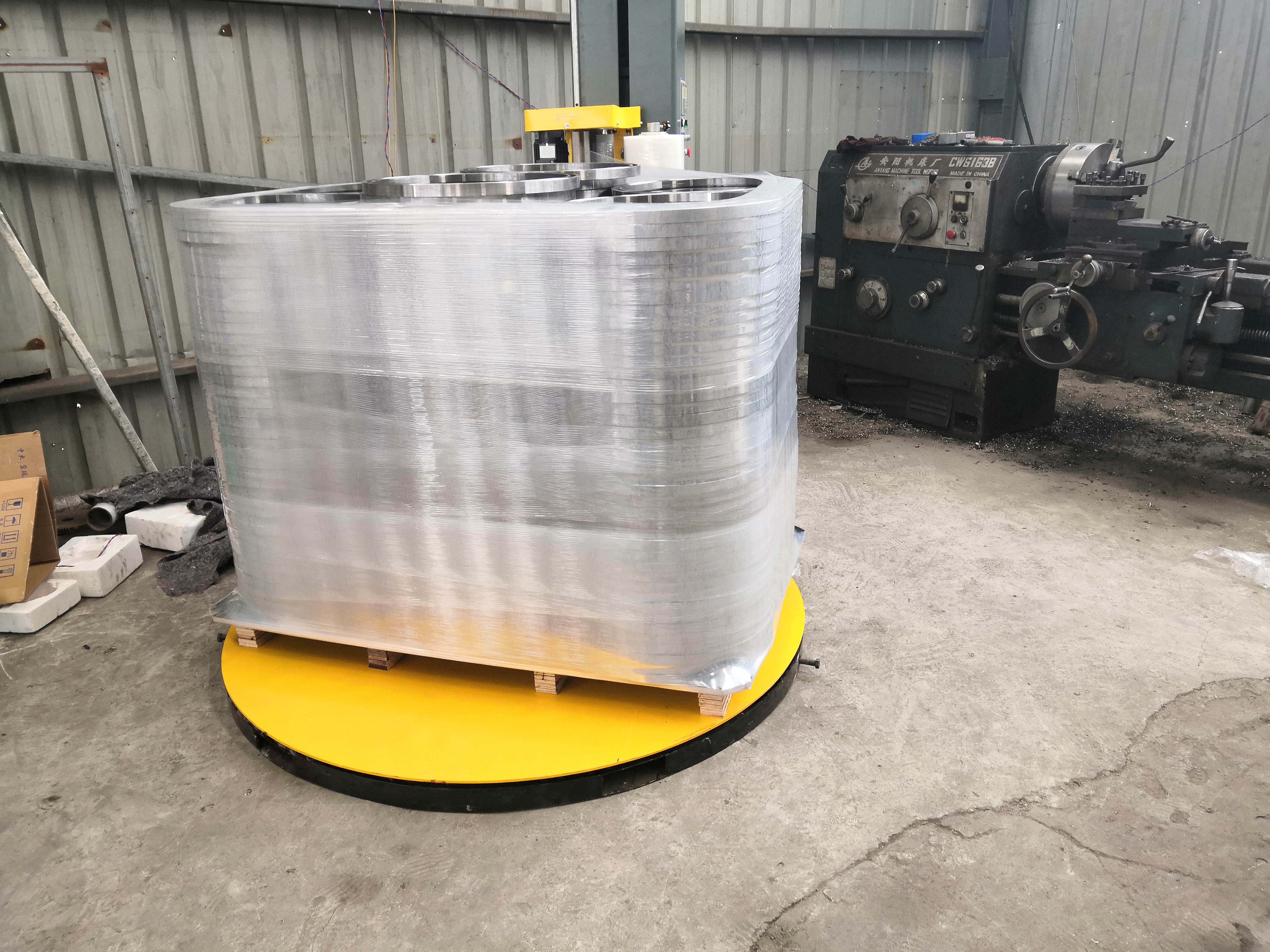

V2 Machine Detail






Canbeusedinthisindustries

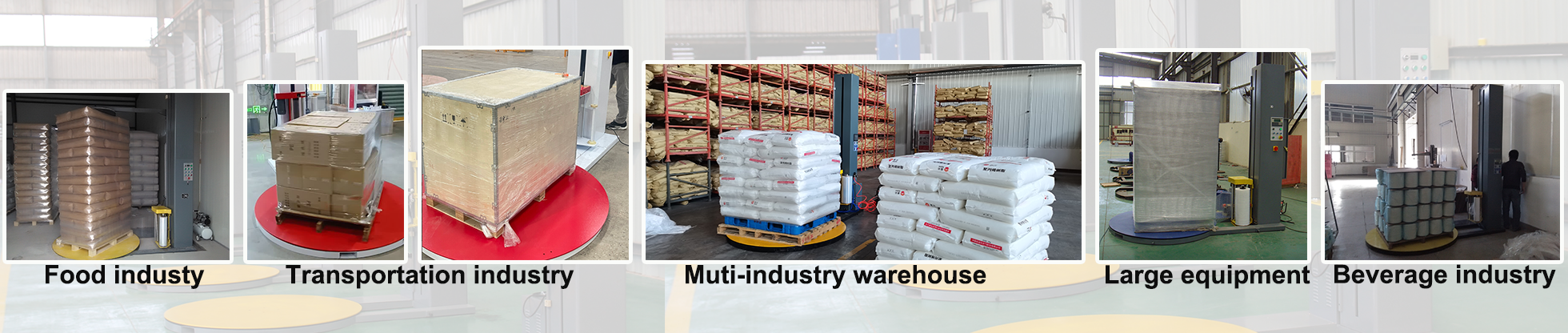

Widely used in glass products, hardwaretools, electronic appliances, papermaking, ceramics, chemicals, food, beverages,building materials and other industries.
