GX1250-600 Drum crusher machine

Model:GX1250-600
Power:160KW
Capacity:15-20Ton / Hour
Type:Drum Chippper
Application:Waste Wood Crushing
Tel:+86-186-156-06-726
WhatsApp:+86-186-156-06-726
Email:admin@deximachine.com
Message
Product Details

Introduction:

The GX type drum wood crusher is equipped with a large drum rotor. It is widely used for crushing large-size logs, wood waste, wooden pallets, stumps and other waste materials.It is mainly used in power plants to process waste materials into fuel.

It is also suitable for large biomass pellet plants to produce fuel for large boilers.


Mainly Parameters:


ModelGX1250-600GX1400-600GX1400-800GX1600-600GX1600-800GX1800-1000GX2000-1000GX2000-1300
Cpacity   (Ton/hour)15-2018-2325-3020-3028-3533-4050-7060-80
Main motor   (KW)160250315315350400400450
Feeder motor   (KW)11+7.511+7.511+7.511+7.511+7.515+1115+15+1115+15+11
Discharge   motor (KW)4+5.54+5.55.5+7.57.5+7.57.5+7.511+7.511+5.55.5+11
Diamter of   rotor (mm)800800105011001100110014001500
Length of   rotor (mm)14001550160017501750201021002250
Rotor speed   (RPM)650650650860860700432432
Feeder size   (mm*mm)1250*6001400*6001400*8001600*8001600*8001800*10002000*10002000*1300
Max feeding   size (mm)3004006007007008009001000
Chain conveyor   size5m*1250mm5m*1400mm6m*14006m*1600mm6m*1600mm6m*1800mm8m*2000mm8m*2000mm
Qty of flying   blades4--6--84--6--84--6--84--6--84--6--84--6--85--1010--15
Size of flying   blades670*220*20737*220*20737*220*20850*220*20850*220*20670*185*20545*220*20545*220*20
Qty of fixed   blades22222332
Size of fixed   blades780*50*40780*50*40780*20*40840*50*40840*50*40670*80*50670*80*501050*80*50
Dimention of   machine7.8m*2.2m*2.8m8.2m*2.5m*2.9m9.8m*2.7m*3.2m9.8m*2.8m*3.3m9.8m*2.8m*3.3m10.5m*2.8m*3.5m12.7m*3.2m*3.7m13.6m*3.2m*3.7m
Weight of   Machine16.5 Ton18 Ton23Ton28 Ton28 Ton35 Ton52 Ton55 Ton

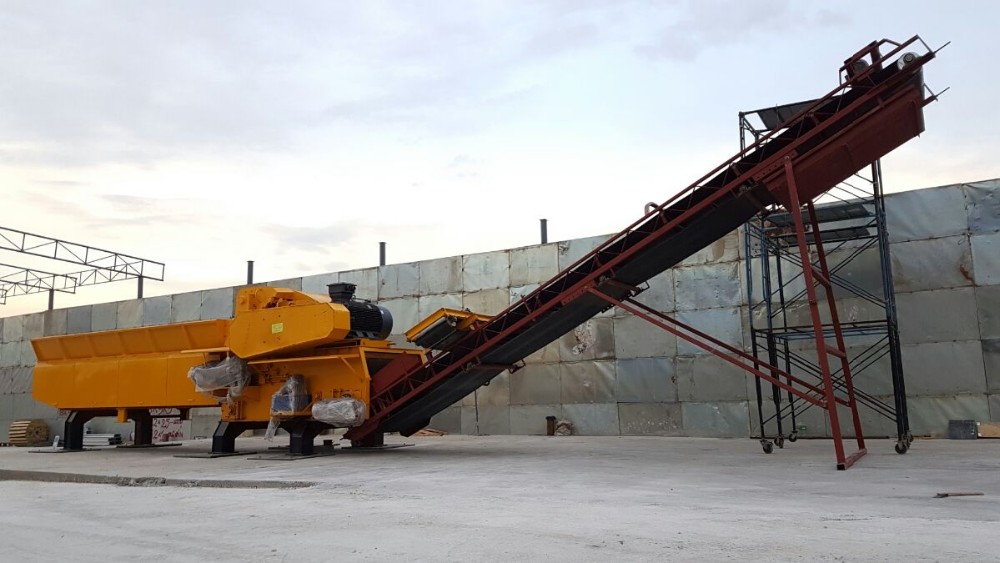

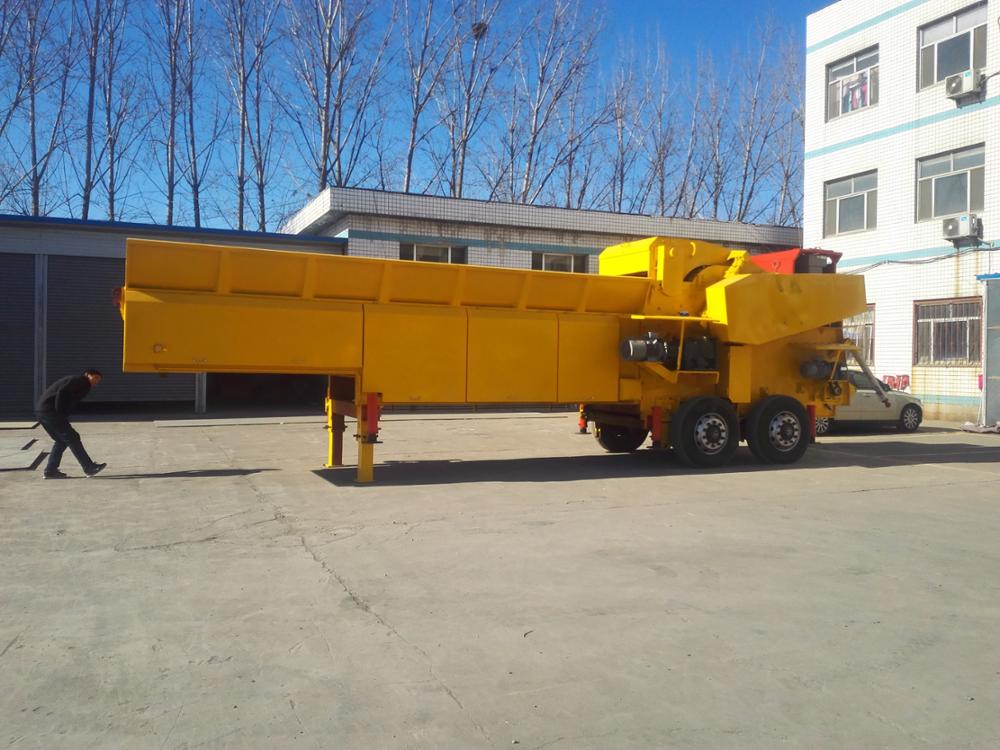

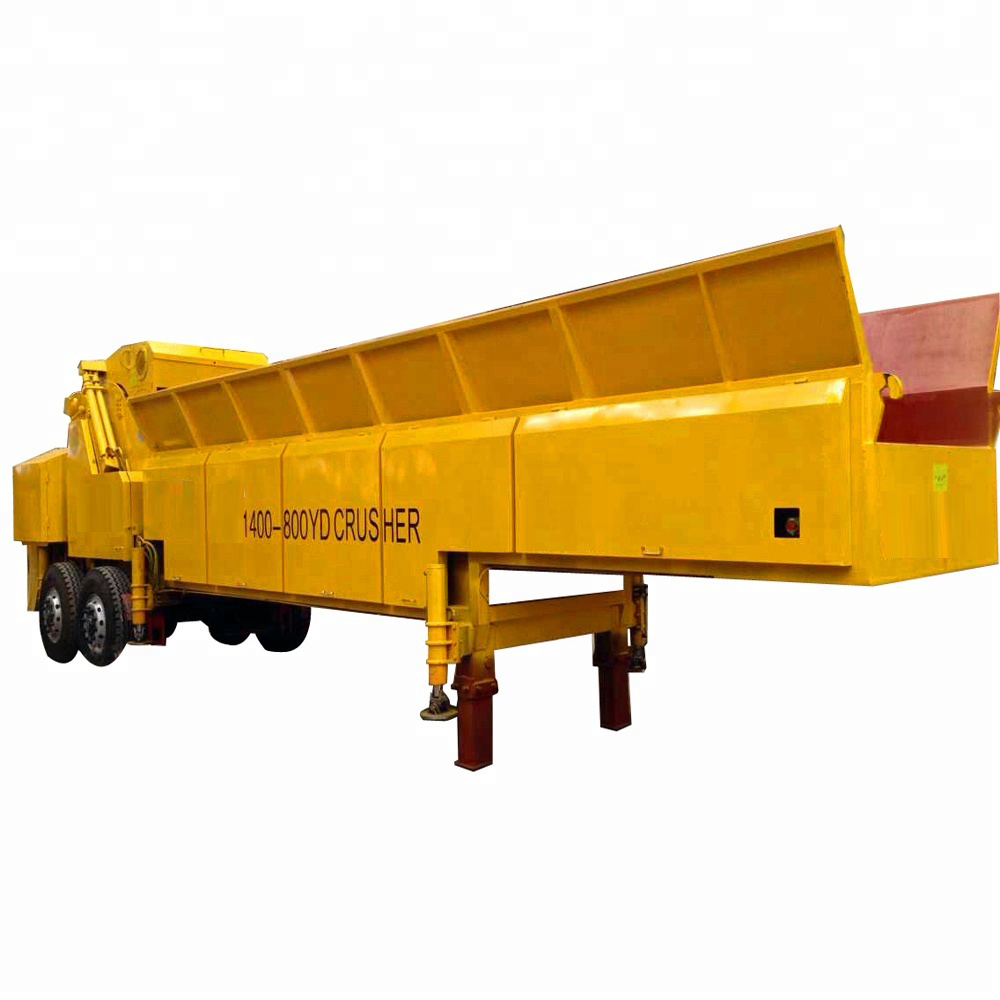

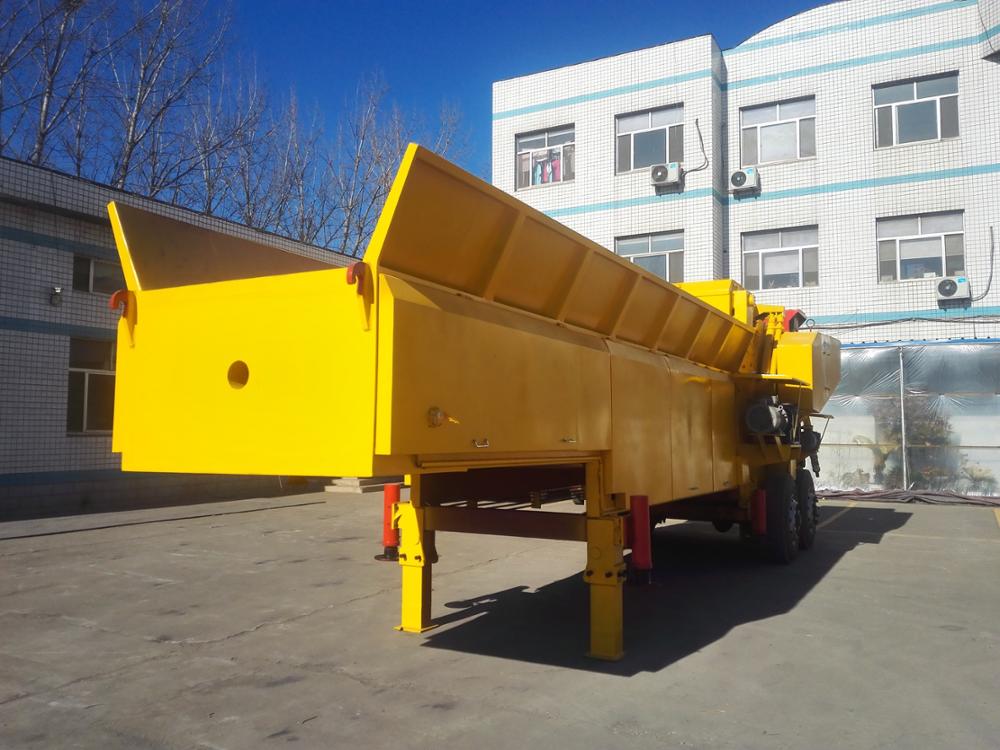

Photo of Machine:
